VFC Data Loggers: How to Choose a Vaccine Temperature Monitoring System

In this post, Discover effective wireless data loggers for vaccine storage and monitoring. Learn about VFC-approved solutions and CDC-compliant systems that ensure optimal vaccine temperature and integrity throughout the cold chain. Safeguard your immunizations with reliable vaccine monitoring technology.

Every year, millions of dollars worth of life-saving immunizations are compromised or completely destroyed due to improper temperature control. Whether you manage a busy retail pharmacy, a rural pediatric clinic, or a large hospital network, maintaining the integrity of the cold chain is not just a matter of financial protection-it is a critical public health responsibility.

To safeguard these biological products, healthcare providers must rely on highly accurate, dependable technology. Implementing a robust vaccine storage monitoring protocol is the only way to guarantee that every dose administered is safe and effective.

Vaccine storage requires accurate and continuous temperature monitoring. A short temperature excursion can affect vaccine quality, create additional documentation work, and lead to possible vaccine loss.

A digital data logger helps clinics record temperatures at regular intervals, review minimum and maximum readings, identify excursions, and maintain records for vaccine storage audits. However, choosing a device requires more than selecting a basic refrigerator thermometer.

This guide explains the features to check when selecting a VFC data logger, including probe type, alarm functions, calibration documentation, logging intervals, data access, and record-keeping capabilities.

What Should a VFC Vaccine Data Logger Include?

A vaccine temperature monitoring device should provide accurate, continuous, and reviewable temperature records. Important features include:

• A detachable buffered probe that reflects vaccine temperature
• Current, minimum, and maximum temperature readings
• An alarm for out-of-range temperatures
• A low-battery indicator
• Recommended uncertainty of ±0.5°C or less
• A programmable logging interval that records at least every 30 minutes
• Downloadable or remotely accessible temperature records
• A current and valid Certificate of Calibration Testing
• An external display that can be checked without opening the storage unit

The buffered probe should normally be placed in the center of the storage unit, with vaccines surrounding it. Clinics using purpose-built storage units should follow the storage-unit manufacturer’s probe-placement instructions.

In this comprehensive guide, we will explore everything you need to know about selecting, setting up, and managing a data logger for vaccine fridge units. From decoding complex compliance guidelines to implementing actionable strategies that prevent inventory loss, this article serves as your ultimate resource for mastering temperature control in clinical environments.

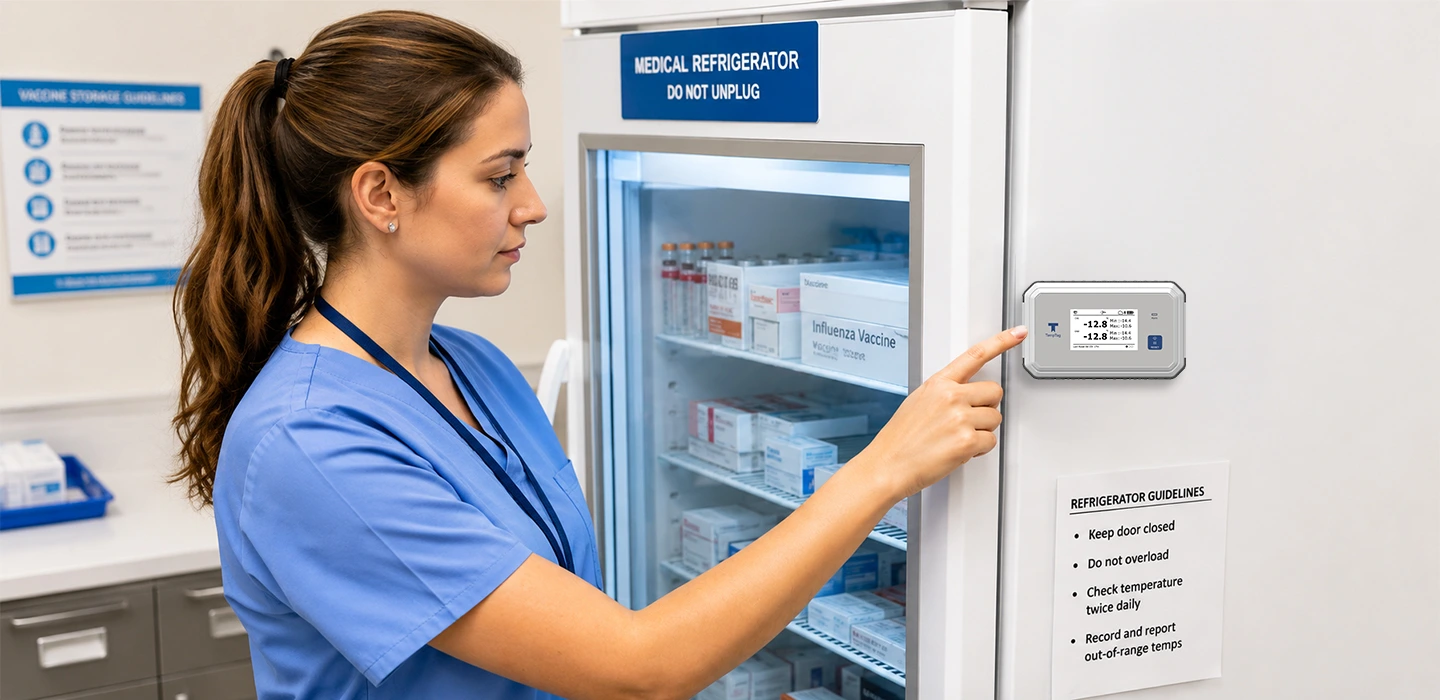

1. Understanding the Vaccine Cold Chain

The “cold chain” refers to the continuous, temperature-controlled supply chain that begins the moment a vaccine is manufactured and ends the exact moment it is administered to a patient. Because vaccines are sensitive biological products, they can rapidly lose their potency if exposed to temperatures outside of their designated ranges. Once potency is lost, it cannot be restored.

The True Cost of Temperature Excursions

A temperature excursion occurs any time a vaccine is exposed to out-of-range temperatures. The consequences of an excursion are severe:

• Patient Risk: Administering a degraded vaccine leaves patients vulnerable to preventable, potentially life-threatening diseases.
• Financial Loss: A single fully stocked medical refrigerator can hold tens of thousands of dollars in inventory. Replacing spoiled stock can devastate a clinic’s budget.
• Reputational Damage: Recalling patients for revaccination destroys trust between the healthcare provider and the community.

Target Temperature Ranges

To prevent these catastrophic outcomes, strict adherence to specific temperature zones is required.

• Refrigerated Vaccines: The standard vaccine storage temperature for refrigerated products is between 2°C and 8°C (36°F and 46°F). The ideal target is exactly 5°C (41°F).
• Frozen Vaccines: The standard vaccine freezer temperature range is between -50°C and -15°C (-58°F and +5°F).
• Ultra-Cold Vaccines: Certain mRNA vaccines require ultra-cold storage, typically between -90°C and -60°C (-130°F and -76°F).

Monitoring these exact ranges requires more than a standard household thermometer; it requires specialized, highly calibrated medical equipment.

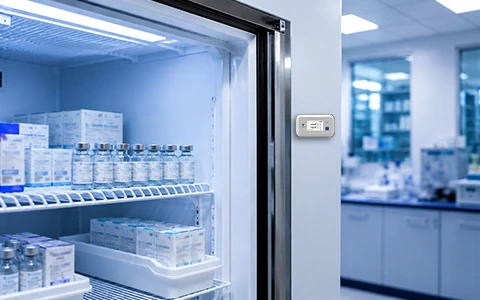

2. VFC Data Logger Requirements and CDC-Recommended Features

For healthcare facilities in the United States, temperature monitoring is heavily regulated. The two primary guiding forces are the Centers for Disease Control and Prevention (CDC) and the Vaccines for Children (VFC) program.

What Temperature Monitoring Device Does CDC Recommend?

CDC recommends using a digital data logger for routine vaccine storage, vaccine transport, temporary clinics, mobile clinics, off-site locations, and community vaccination sites.

Unlike a basic minimum and maximum thermometer, a digital data logger records temperatures at preset intervals. This allows clinic staff to determine when an excursion happened, how long it lasted, and the highest or lowest temperature recorded.

Each vaccine storage unit and transport unit should have an appropriate temperature monitoring device. Facilities should also maintain at least one backup device in case the primary logger malfunctions or is being calibrated.

What “CDC-recommended” means

• CDC does not publish a single “recommended brand” for vaccine temperature monitoring devices. Instead, CDC recommends the features and performance requirements a device must have.
• When evaluating a vaccine monitoring system, you should match your device’s specification sheet and calibration documentation to CDC Toolkit requirements and your state/local immunization program expectations.

VFC Program Requirements

The Vaccines for Children (VFC) program provides immunizations to children whose parents or guardians may not be able to afford them. Because these vaccines are federally funded, the VFC program enforces exceptionally strict storage rules.

If your clinic participates in the VFC program, choose a digital data logger with the features recommended by CDC and required by your state or local immunization program:

1. An active temperature display that can be easily read from the outside of the unit.
2. Continuous monitoring capabilities with a measurable logging interval (usually reading at least once every 15 minutes).
3. The ability to calculate and display minimum and maximum temperatures.
4. A detachable probe housed in a thermal buffer.
5. A low-battery indicator.
6. An alarm for out-of-range temperatures.

Utilizing a certified vaccine for children temperature monitoring device is non-negotiable for VFC providers. Failing to meet these standards during a site visit can result in suspension from the program and forced restitution for compromised inventory

3. Hardware Deep Dive: Choosing the Right Data Logger

Not all thermometers are created equal. When sourcing a data logger for vaccines, it is vital to understand the technical specifications that separate generic devices from medical-grade solutions.

Medical Grade Refrigerator Thermometer Requirements

A standard kitchen thermometer measures the air temperature of the fridge. However, air temperature fluctuates wildly every time the refrigerator door is opened. Vaccines, being liquid, change temperature much more slowly than air.

To bridge this gap, medical guidelines require specific hardware components.

The Importance of a Buffered Temperature Probe

One of the most critical components of any reliable setup is the probe. Understanding the benefits of a buffered temperature probe is essential for accurate monitoring.

Instead of a bare metal probe exposed to the air, medical data loggers use a probe submerged in a small vial of liquid (usually glycol) or embedded in a medium like glass beads or solid Teflon.

• Thermal Mimicry: The buffer mimics the thermal properties of a liquid vaccine vial.
• Fewer False Alarms: Because the buffer slows the probe’s reaction time, briefly opening the door to grab a syringe will not trigger a false high-temperature alarm. The logger measures the temperature of the vaccine, not the air.

Continuous Temperature Recording Device

A continuous temperature recording device logs data at set intervals 24 hours a day, 7 days a week, 365 days a year. This continuous stream of data is vital. If a power outage occurs at 2:00 AM and power is restored at 4:00 AM, a simple current-temperature thermometer will show normal readings when staff arrive at 8:00 AM. A continuous DDL, however, will show exactly how high the temperature spiked and for how long, allowing you to determine if the stock is still viable.

Device selection checklist

• Sensor type: Buffered probe (glycol, beads, Teflon) suitable for vaccine storage monitoring.
• Accuracy: Typically ±0.5°C (or better) with supporting documentation.
• Logging interval: Programmable to measure and record temperatures at least every 30 minutes. State or local immunization programs may require a shorter interval
• Displays: Current temp + min/max since last reset (visible without opening the unit).
• Alarms: Audible/visual and (for cloud systems) remote alerts.
• Data access: Downloadable reports for audits; clear time-stamped history.
• Calibration: Current, valid NIST-traceable calibration certificate for each device.

Single-vendor option: Plumsense FX100 and FX500

If your goal is to streamline procurement and compliance workflows, Plumsense offers digital data loggers that can be used as part of a CDC- and VFC-aligned monitoring approach (confirm any state-specific VFC requirements before purchase):

• Plumsense FX100
• Plumsense FX500

In practical terms, choosing one vendor for hardware devices, monitoring, and traceability, and calibration validation can reduce gaps in documentation and simplify audits, because the device, its temperature records, and its calibration paperwork are managed in one ecosystem.

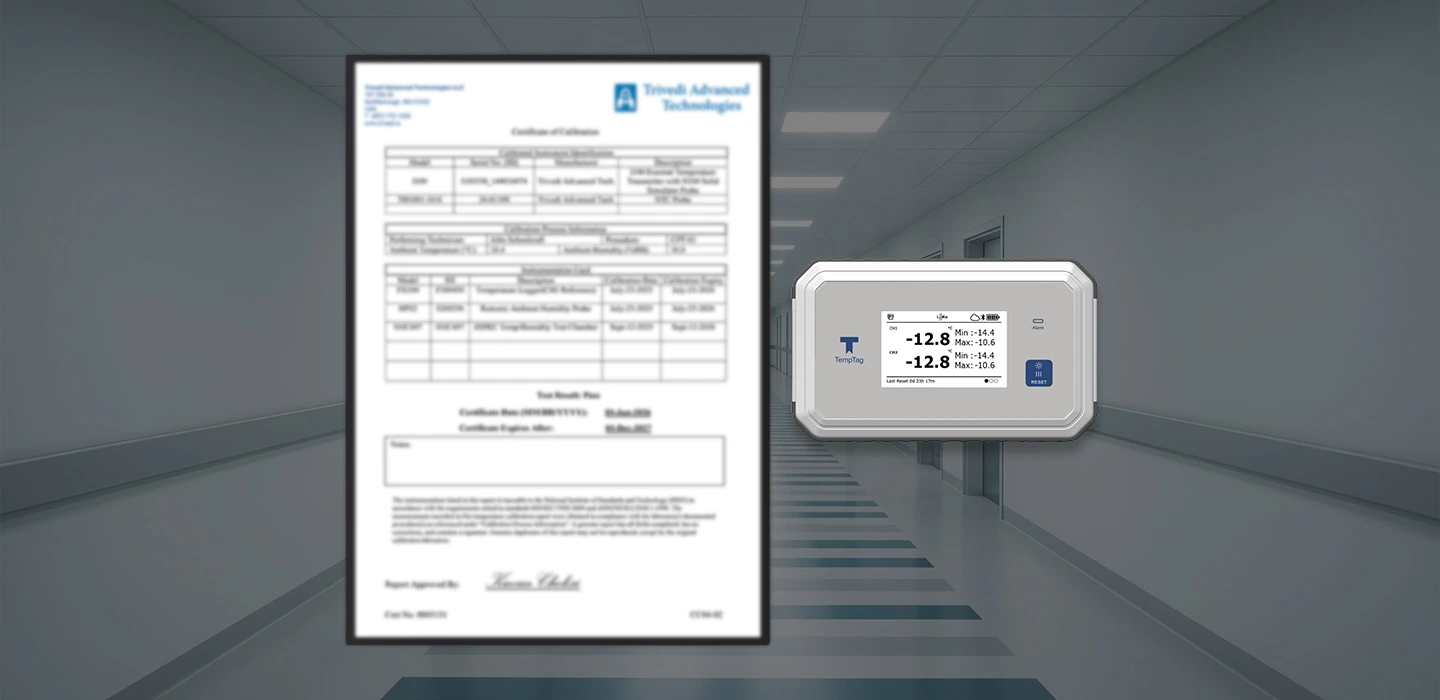

Certificate of Calibration Testing

Each vaccine data logger should have a current and valid Certificate of Calibration Testing. The certificate should identify the device model, serial number, calibration date, measurement uncertainty and testing result.

NIST traceability is one accepted calibration method. Other accepted methods may include ISO/IEC 17025 conformity, testing by an appropriately accredited laboratory, applicable ASTM specifications or another accepted accuracy-validation method.

Calibration testing should generally be performed every two to three years or according to the manufacturer’s recommended schedule.

CDC does not limit acceptable calibration documentation only to NIST traceability. It also currently recommends calibration every two to three years or according to the manufacturer’s schedule.

4. Temperature Monitoring and VFC Audit Documentation

Accurate documentation is an important part of vaccine storage management. Automated reports can support the process, but staff should still follow the daily review and documentation procedures required by their immunization program.

At the start of each workday, staff should check and record the minimum and maximum storage-unit temperatures. Records should include:

• Minimum and maximum temperatures
• Date and time of the check
• Name of the person completing the check
• Details of any temperature excursion
• Actions taken after an excursion
• Relevant data logger reports
• Current calibration certificates

Temperature records should generally be kept for three years. VFC providers should confirm whether their state or local program requires a longer retention period or additional documentation.

USB vs Cloud-Based Monitoring

USB Data Loggers Traditional USB loggers are standalone devices. To retrieve the data, a staff member must physically unplug the logger (or its USB drive), plug it into a computer, and download the report.

• Pros: Lower initial cost, no monthly software subscription fees, independent of Wi-Fi or local network outages.
• Cons: Highly manual process. Relies entirely on staff memory and compliance. If the fridge fails overnight, you won’t know until someone manually checks the screen or downloads the data the next morning.

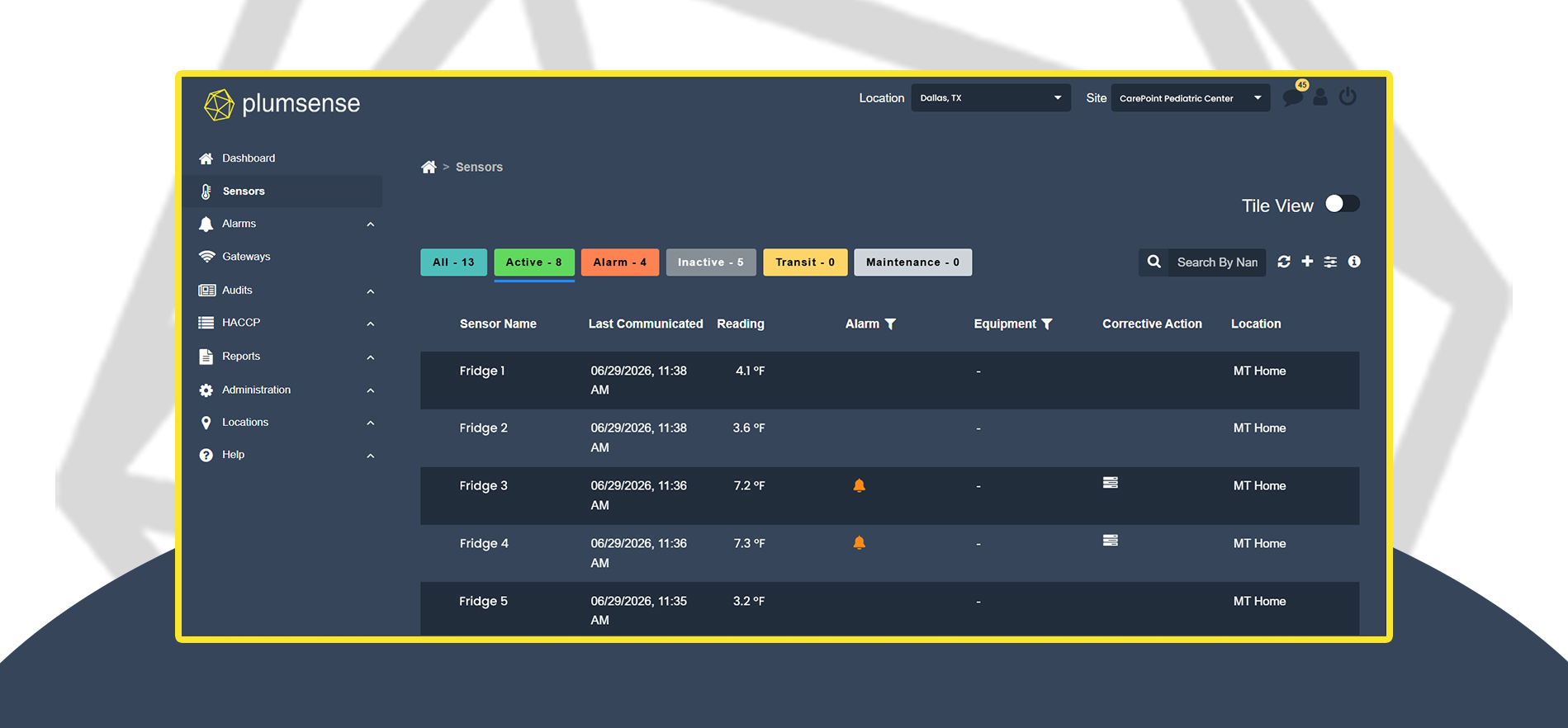

Cloud-Based Wireless Systems A wireless medical temperature monitoring system connects to your facility’s Wi-Fi or cellular network. It continuously transmits data to a secure cloud server, allowing staff to view real-time temperatures from any smartphone or web browser.

• Pros: Real-time visibility, automated logging, immediate emergency alerts, remote access, and centralized dashboards for multiple locations.
• Cons: Higher upfront cost, potential monthly subscription fees, and requires a stable internet connection (though most good units have onboard backup memory if the Wi-Fi drops).

At-a-glance comparison: USB vs cloud vaccine monitoring system, Automated Temperature Reporting Software

For busy clinics, automated temperature reporting software is a game-changer. Instead of relying on manual paper logs, the software automatically generates daily, weekly, and monthly compliance reports. These systems streamline the documentation required by state health departments and the VFC program, practically eliminating human error and freeing up valuable nursing time.

Remote Temperature Alerts for Pharmacies

Perhaps the greatest advantage of a cloud-based vaccine monitoring system is the ability to send remote alerts. If a compressor fails at midnight on a Saturday, the system can instantly trigger SMS text messages, emails, and automated phone calls to designated staff members.

Remote temperature alerts for pharmacies mean the difference between a minor maintenance inconvenience and a $50,000 inventory write-off. By receiving instant notifications, on-call staff can rush to the facility and move the stock to a backup refrigerator before the thermal buffer warms up enough to damage the vaccines.

5. Setup and Actionable Configuration

Purchasing top-tier equipment is only half the battle. Proper installation and configuration are what actually safeguard your inventory.

Best Practices for Physical Placement

Where you place your sensors and your vaccines matters immensely. Medical refrigerators have internal micro climates; the back wall is often colder, while the area near the door is warmer.

1. Central Placement: Place the buffered temperature probe in the center of the refrigerator, right alongside the vaccines. Do not place it in the doors, on the top shelf near the cooling vent, or on the absolute bottom floor.
2. Avoid the Walls: Keep the probe at least two to three inches away from the internal walls of the unit.
3. Cable Management: If using a wired probe, ensure the flat cable allows the refrigerator door to seal completely. A compromised door gasket will lead to condensation, frost build-up, and temperature fluctuations.

Setting Up Vaccine Fridge Alarms

Properly configuring your digital data logger’s alarm settings is crucial to avoid alarm fatigue while ensuring prompt emergency responses.

• High and Low Thresholds: For standard refrigerated vaccines, set the low alarm threshold at 2°C and the high threshold at 8°C.
• Delay Times: Setting up vaccine fridge alarms requires utilizing “delay times” or “consecutive reading” rules. Because you are using a buffered probe, if the temperature reads out-of-range for 15 continuous minutes, it indicates a genuine unit failure rather than a temporary spike from an open door.
• Escalation Protocols: In your automated software, set up an escalation chain. If the primary contact does not acknowledge the SMS alert within 15 minutes, the system should automatically text the secondary contact, and so on.

6. Managing Data and Surviving Audits

Compliance is heavily reliant on accurate, historical data. Regulators, internal auditors, and program coordinators expect meticulous record-keeping.

Interpreting Pharmacy Temperature Logs

Data is useless if your team doesn’t know how to read it. Interpreting pharmacy temperature logs is a skill that must be trained. When reviewing the line graphs generated by your DDL:

• Look for Cycling Trends: A healthy medical refrigerator will show a tight “sine wave” pattern on the graph, consistently cycling between, for example, 4°C and 6°C as the compressor turns on and off.
• Spotting Compressor Failure: If the wave pattern starts widening-dropping to 2°C and spiking to 7°C-it is an early warning sign that the compressor is struggling or the thermostat is failing.
• Identifying Defrost Cycles: Freezers will occasionally show sharp, brief spikes. This is usually the unit’s auto-defrost cycle. As long as the buffered probe remains within the safe vaccine freezer temperature range during this cycle, the stock is safe.

Audit Preparation

State inspectors and VFC auditors frequently conduct unannounced site visits. To ensure you pass with flying colors:

1. Keep the past three years of temperature logs easily accessible (either printed in a binder or stored in a quickly navigable digital archive), or longer if your state program requires it.
2. Have your current, unexpired NIST traceable calibration certificate physically printed and taped to the side of the corresponding refrigerator.
3. Ensure daily manual check logs are signed, even if you use automated systems (many states still require a physical initialing of min/max temperatures once or twice a day to ensure human oversight).

7. Transit and Logistics: Protecting the Moving Cold Chain

The cold chain doesn’t just exist inside your facility. Vaccines are constantly on the move-from the manufacturer to the distributor, from the distributor to your clinic, and sometimes from your clinic to an off-site pop-up immunization event.

Ship Vaccine Temperature Monitoring Service

When ordering vaccines, ensure your distributor utilizes a reputable ship vaccine temperature monitoring service. Transit is the most vulnerable phase of the cold chain.

• Vaccines should arrive in insulated containers packed with conditioned coolants.
• Every shipment must include a transit data logger.
• Upon arrival, the receiving staff must immediately check the transit logger to ensure no excursions occurred during transport. If the transit monitor indicates an excursion, the shipment must be quarantined in the fridge, and the distributor must be contacted before any doses are administered.

Off-Site Transport and Emergencies

If you need to transport vaccines yourself – whether for a mobile clinic or because of a facility power outage – you cannot use standard coolers and loose ice.

1. Use qualified pack-outs (purpose-built portable medical coolers).
2. Place a data logger directly in the cooler.
3. Ensure the logger has a digital readout so the driver or nurse can continuously monitor the temperature during transit without opening the cooler lid.

8. Best Practices to Prevent Excursions

While having a great data logger will alert you to problems, the ultimate goal is to prevent those problems from happening in the first place. Knowing how to prevent vaccine spoilage requires implementing rigorous cold chain management best practices.

Organize Your Refrigerator Properly

A cluttered fridge is a dangerous fridge. Proper airflow is vital for maintaining uniform temperatures.

• Household-grade units: Water bottles may be placed on the top shelf, floor, and door racks to help reduce temperature fluctuations.
• Purpose-built or pharmaceutical-grade units: Water bottles are not recommended for most units unless the manufacturer specifically advises their use.
• Always follow the storage-unit manufacturer’s instructions.

Develop Standard Operating Procedures (SOPs)

Technology can only do so much; human behavior is the other half of the equation. Every clinic must have a written, easily accessible SOP for vaccine storage.

• Designate Coordinators: Appoint a primary and secondary Vaccine Coordinator. These specific individuals are responsible for reviewing logs, checking calibration dates, and overseeing inventory.
• Emergency Action Plan: Write a step-by-step emergency plan. If a power outage occurs, staff should know exactly where the backup generator is, or where the emergency coolers and conditioned ice packs are stored for immediate evacuation of the vaccines.
• Routine Maintenance: Schedule quarterly cleanings of the refrigerator’s condenser coils. Dust buildup on the coils forces the compressor to work harder, eventually leading to catastrophic failure.

9. Troubleshooting Common Excursion Scenarios

Even with the best preparation, emergencies happen. How you respond to an excursion dictates whether your inventory is saved or lost.

Scenario 1: Power Outage
If the power goes out, DO NOT open the refrigerator door. A well-sealed medical-grade refrigerator can hold its temperature for several hours if left closed. Monitor your wireless medical temperature monitoring system via your cellular network. If the temperature approaches the 8°C threshold, execute your emergency transport SOP immediately.

Scenario 2: The Door Was Left Ajar
This is the most common cause of excursions. If a staff member leaves the door cracked open overnight, the temperature will likely spike, and the logger will trigger an alarm.

• Action: Close the door immediately. Do NOT throw the vaccines in the trash. Mark the inventory as “DO NOT USE” and quarantine it inside the fridge. Download your DDL report to see exactly how long the temperature was out of range and what the peak temperature was. Contact the vaccine manufacturers with this specific data; they will run a stability analysis and tell you whether the vaccines are still viable.

Scenario 3: Freezing Temperatures in a Refrigerator Surprisingly, exposing refrigerated vaccines to freezing temperatures (below 0°C) is often more damaging than exposing them to heat. Freezing can permanently alter the molecular structure of adjuvants (like aluminum salts) used in many vaccines.

• Action: If your logger shows the temperature dipped below freezing, quarantine the stock and call the manufacturer. To prevent this, never store vaccines near the cold air vent at the top/back of the refrigerator.

Conclusion

Choosing a vaccine data logger requires careful review of the probe, measurement accuracy, logging interval, alarms, data access, calibration documentation, and reporting capabilities.

CDC recommends digital data loggers for routine vaccine storage and transport, but it does not approve or endorse individual private products. VFC providers should compare each device with current CDC guidance and confirm all state or local immunization-program requirements before purchasing.

Plumsense FX100 and FX500 can support vaccine temperature monitoring workflows through continuous monitoring, alerts, temperature records, and reporting capabilities. Clinics should review the selected device configuration, probe, and calibration documentation against their applicable program requirements.

References (for trust and verification)

• CDC: Vaccine Storage and Handling Toolkit
• CDC: Vaccines for Children (VFC) Program
