D100

D100

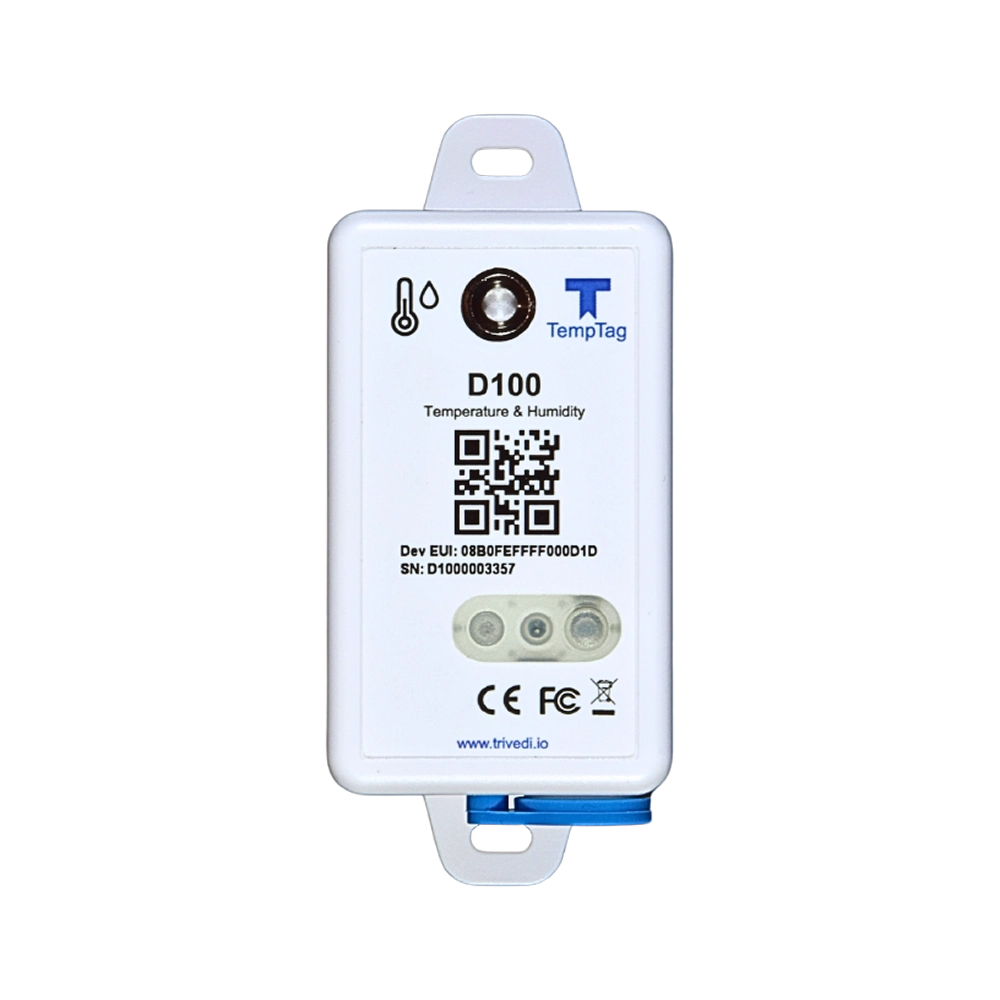

The TempTag™ D100 Temperature & Humidity Data Logger uses the LoRaWAN protocol and includes a built-in temperature and humidity sensor, with an option to connect an external temperature probe. Designed for food service environments, its signal can pass through stainless steel doors with ease. The D100 supports LoRaWAN v1.0.3 Class A and works with the M700 LoRaWAN gateway. It features an internal datalogger that stores up to 3000 records and automatically uploads data once network coverage is restored.

Category:

Description

Wireless Protocol LoRaWAN
Frequency Bands US915 / EU868 / AU915 / AS923
Built-In Temperature Sensor Measurement Range: -40 to 80°C
Resolution: 0.01°C
Accuracy: ±0.5°C
Long term drift: —
Built-In Humidity Sensor Measurement Range: 0 to 96% RH
Resolution: 0.04% RH
Accuracy: ±3% RH
Long term drift: —
Logging Rate 1–60 minutes (Default 15 minutes) – User configurable
Data Logging 3000 Records
Edge Processing Food Temperature Product Simulation
Battery Type 3 V, 2400 mAh Lithium Battery
Battery Life 3+ years, typical transmission with 15 minutes interval
Environmental Rating IP67
Dimensions 3.6” × 1.7” × 1.1”
(92 mm × 42.5 mm × 29 mm)
Weight 65.5 g
Compliance 21 CFR Part 11, FCC, IC, CE, RoHS
