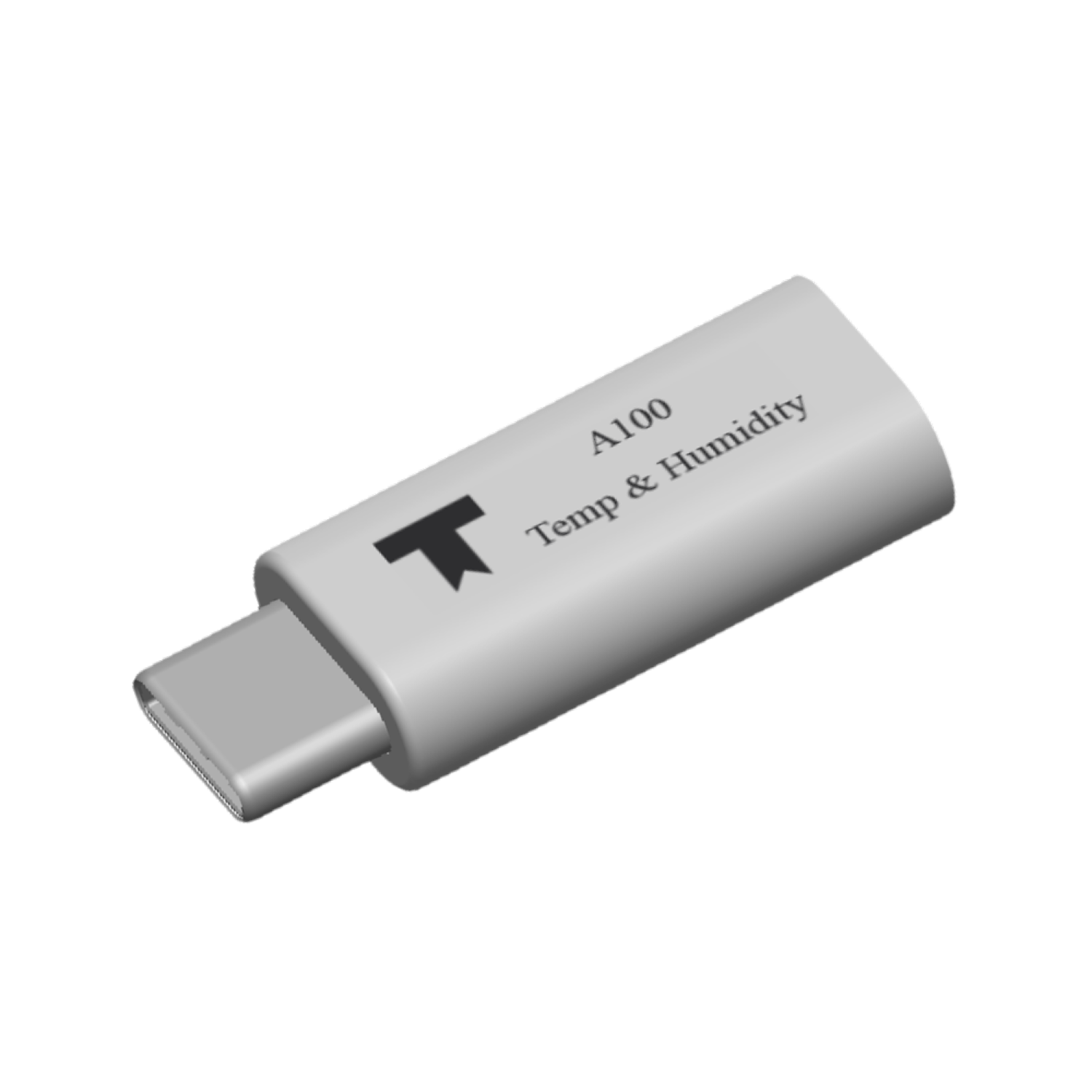

A100

A100

The A100 Temperature and Humidity Sensor delivers fully calibrated, linearized, and temperature-compensated digital output with a fast start-up time. It features an I2C interface, high accuracy of ±2%RH and ±0.1°C, long-term stability, and a proprietary USB-C I2C interface housed in a durable polycarbonate case.

Category:

Description

Humidity Specification
Parameter Value & Units
Accuracy Tolerance (Typ.) ±2 %RH
Repeatability (Low) 0.21 %RH
Repeatability (Medium) 0.15 %RH
Repeatability (High) 0.08 %RH
Resolution 0.01 %RH
Hysteresis
(at 25°C)
±0.8 %RH

Range 0 to 100 %RH
Response Time 8 Seconds
Long-term Drift <0.25 %RH / year

Temperature Specification
Parameter Value & Units
Accuracy Tolerance (Typ.) ±0.1 °C
Repeatability (Low) 0.15 °C
Repeatability (Medium) 0.08 °C
Repeatability (High) 0.04 °C
Resolution 0.01 °C
Range −40 to 125 °C
Response Time > 2 Seconds
Long-term Drift < 0.03 °C / year
